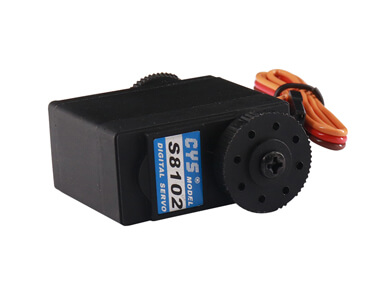

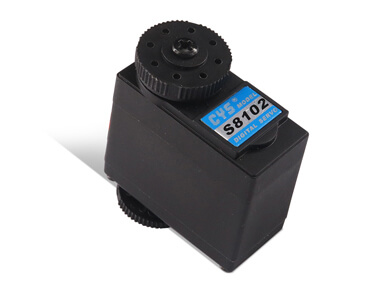

Item NO.: CYS-S8102 13Kg robotic servo motor without wing
Description : Standard size servo motor for Robotics
Size : 40*20*37.6MM
Torque : 12Kg.cm ~ 13Kg.cm
Speed : 0.16sec ~ 0.14sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 54± 1g
Application&Features
| Specification Sheet | |
| Item No. | S8102 |
| Type | Digital |
| Weight | 56g |
| Size | 40.8*20.1*37.6mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.16sec/60° at no load |
| Operating Speed (7.4V) | 0.14sec/60° at no load |
| Stall Torque (6.0V) | 12kg.cm |
| Stall Torque (7.4V) | 13kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| 360 Modifiable | No |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and160mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 200mA no load operating |
| Stall Current | 2.7A/2.8A |
| Dead Band Width | 3usec |
| Motor Type | Iron core |
| Bearing Type | double ball bearing |
| Horn gear spline | 25T |
| Gear Type | Metal |
| Connector Wire Length | 300mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal | |
