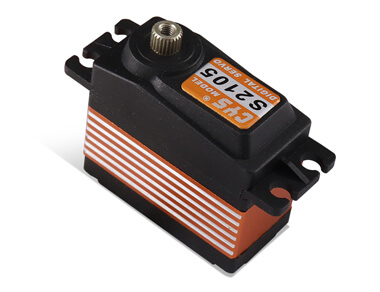

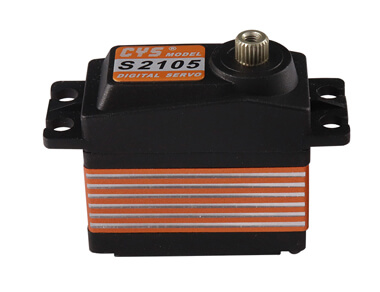

Item NO.: CYS-S2105 600 helicopter digital servo
Description : 5Kg high speed digital servo
Size : 40*20*39MM
Torque : 4.0Kg.cm ~ 5.0Kg.cm
Speed : 0.05sec ~ 0.04sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 54± 1 g
Application&Features
| Type | Digital |
|---|---|
| Weight | 54g±1g |
| Size | 40.1*20.1*37.3mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.06sec/60° at no load |
| Operating Speed (7.4V) | 0.05sec/60° at no load |
| Stall Torque (6.0V) | 5kg.cm |
| Stall Torque (7.4V) | 6kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 100mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 120mA no load operating |
| Stall Current | 2.5A/2.8A |
| Dead Band Width | 2usec |
| Motor Type | Coreless motor |
| Bearing Type | ball bearing |
| Horn gear spline | 25T |
| Gear Type | Titanize |
| Connector Wire Length | 300mm±5mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal | |
