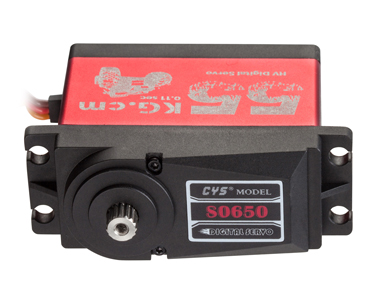

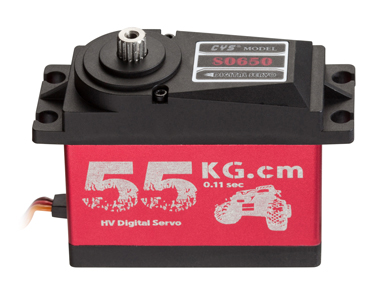

Item NO.: CYS-S0650 55KG High Torque Servo for 1/5 Monster Truck Nitro
Description : 55KG High Torque Servo for 1/5 Monster Truck Nitro
Size : 66*30*58.1MM
Torque : 52Kg.cm ~ 55Kg.cm
Speed : 0.18sec ~ 0.20sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 274± 5 g
| Type | Digital |
|---|---|
| Weight | 202± 1 g |
| Size | 66*30*56mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.13sec/60° at no load |
| Operating Speed (7.4V) | 0.11sec/60° at no load |
| Stall Torque (6.0V) | 52kg.cm |
| Stall Torque (7.4V) | 55kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 120mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 150mA no load operating |
| Stall Current | 10A/13.4A |
| Dead Band Width | 4usec |
| Motor Type | NdFeB motor |
| Bearing Type | Dual Ball Bearing |
| Horn gear spline | 15T |
| Gear Type | Steel |
| Connector Wire Length | 300mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal | |
